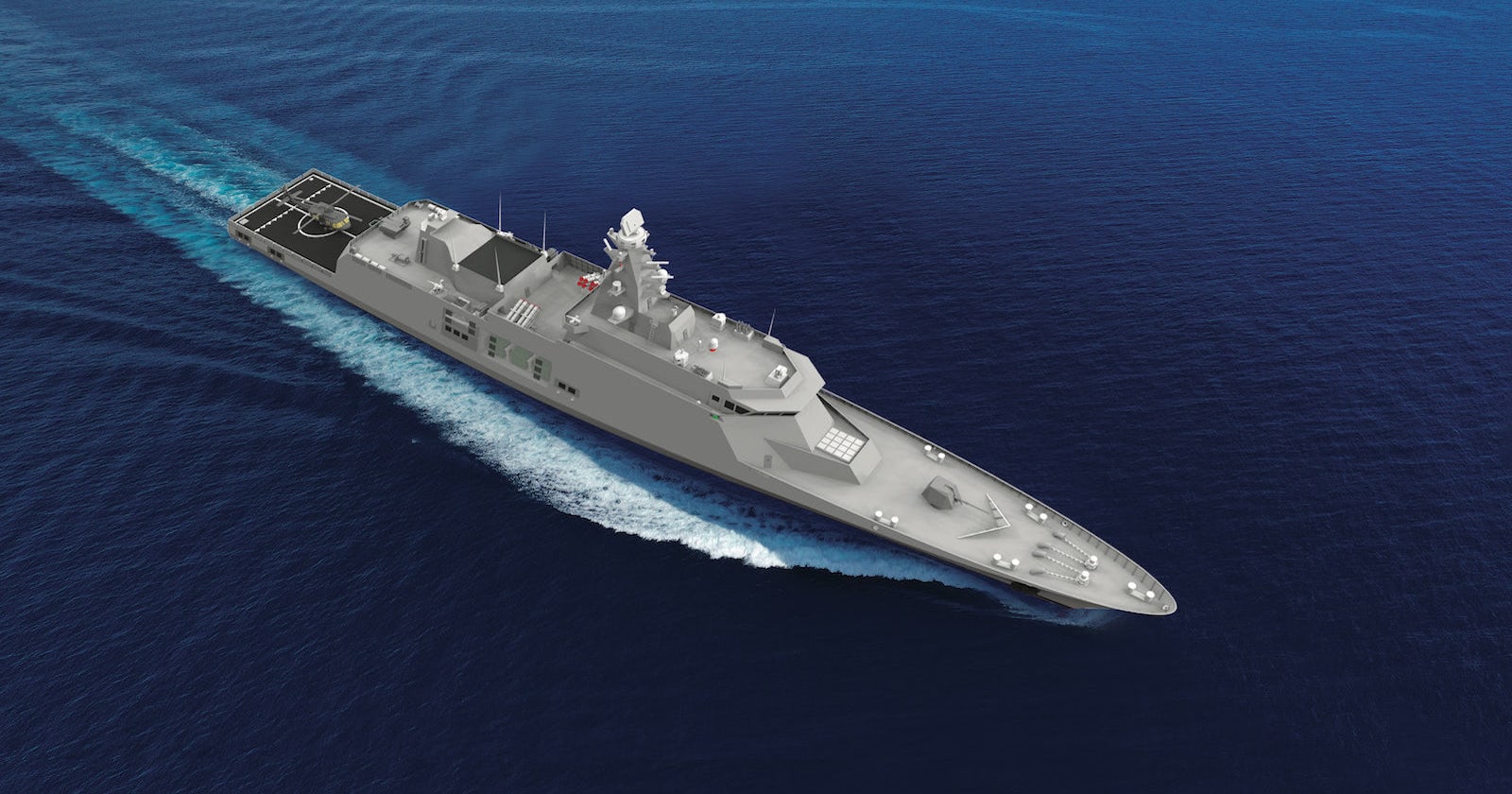

Frigate - 140 BORA Multi Mission

Frigate - 140 BORA Multi Mission

Missions

  • Intelligence, Surveillance and Reconnaissance (ISR) Operations
  • Anti-Surface Warfare, Anti-Air-Warfare and Anti-Submarine Warfare
  • Maritime Security Operation (Anti-piracy, anti-terrorism, anti-smuggling, anti-human trafficking and anti-drug operations)
  • Conducting border patrols, territorial defense and maritime operations up to Exclusive Economic Zone (EEZ)
  • Capable of helicopter operations and can accommodate any heavy helicopter at the helideck
  • Two hangars, for heavy helicopters and/or Unmanned Aerial Vehicle for day and night helicopter operations
  • Reduced radar, infrared and acoustic signatures (stealth technology) as well as magnetic signature are considered as design goals
    		•

    General Specifications

    General Information
    LOA : 140 m
    Beam : 18.95 m
    Draft : 5.50 m
    Displacement : 6.500 tonnes
    Performance
    Speed : 29+/18 knots
    Range : 5.000 nm
    Endurance : 21 days
    Accommodation
    Crew : 160

    Technology & Combat Systems

    Propulsion & Energy Systems
    Propulsion : CODAG Configuration with 2 x CPP
    Engines : 2 Diesel Engines and 2 Gas Turbine
    Navigation
    Nautical Eqp : Navigation Radars (LPI) INS/GPS, W-ECDIS, (D)GPS, Echo Sounder, EM Log, Ship Data Distribution System,
    Weapon & Sensor Suite
    Weapons : 76 mm Main Gun 35 mm CIWS (GÖKDENİZ) 2 x 25 mm (STOP RsMG) 2 x 12.7 mm (STAMP-2 RsMG) Decoy Launching System 4 X 4 SSM (ATMACA) 1x16 VLS (SAM) Torpedo Launching System Torpedo Decoy
    Sensors : 3D Search Radar, E/O Sensors, Fire Control Radars, Illumination Radars, R-ESM, R-ECM, Hull Mounted Sonar, Torpedo Countermeasure System (TCMS), TA Sonar, Laser Warning System Meteorological Sensors
    Communication : HF, UHF and VHF Military Communications, SATCOM, Military Link System
