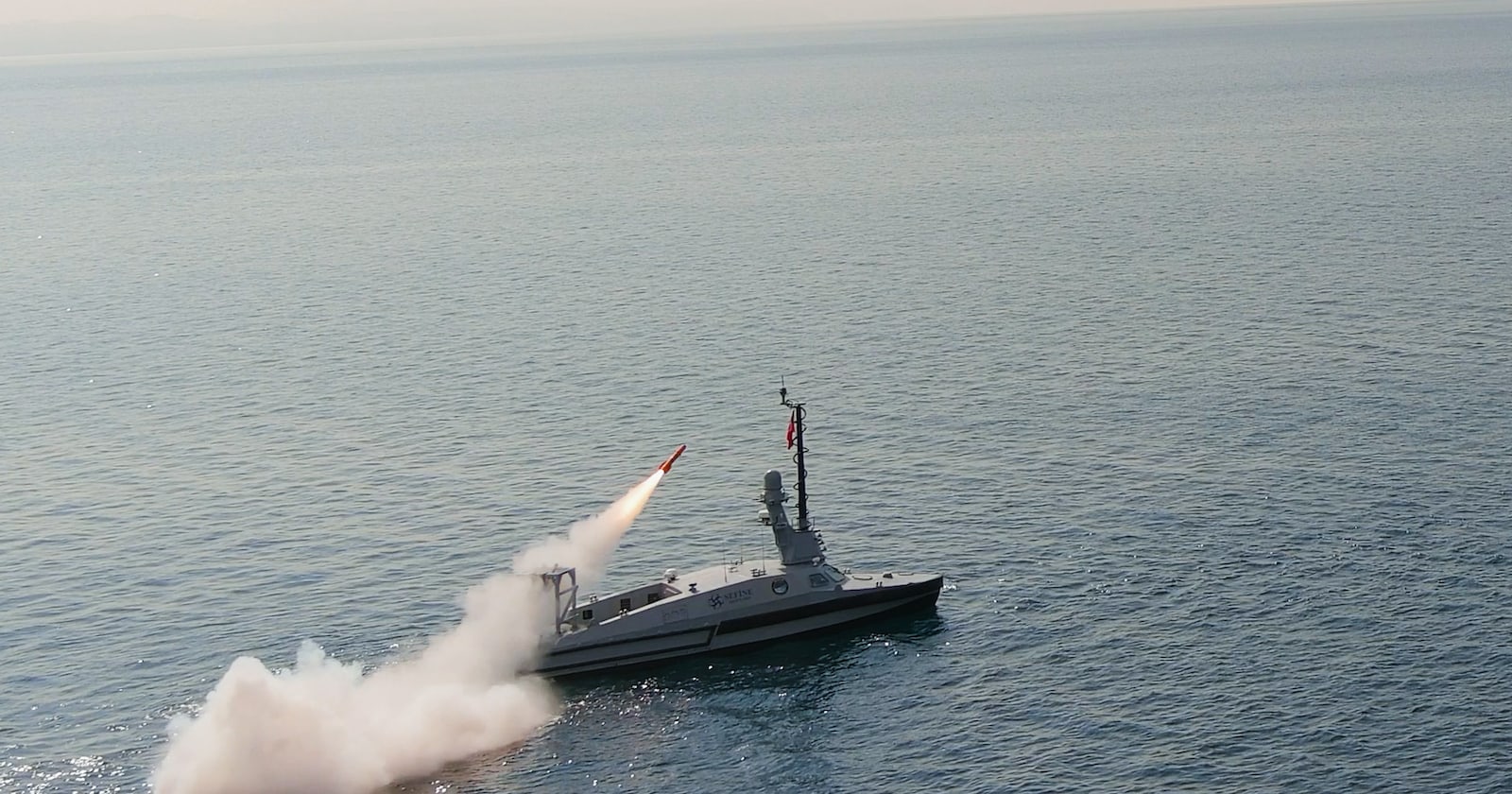

USV - UNMANNED SURFACE VEHICLE (MARLIN)

USV - UNMANNED SURFACE VEHICLE (MARLIN)

Missions

Primary Missions
  • Anti Surface Warfare
  • Anti Submarine Warfare
  • Amphibious Operations
  • Electronic Warfare
    		•
    Secondary Missions
  • Engage with SSM to Surface and Shore
  • Engage asymmetric threats
  • Cooperation with UAV for Targeting
  • Interoperability
    		•

    General Specifications

    General Information
    Length : 15 m
    Beam max. : 3.85 m
    Draught : 0.8 m
    Displacement : 21 tons
    Performance
    Speed : +35 knots
    Range : 1.000 nm
    Endurance : 4-7 days

    Technology & Combat Systems

    Propulsion & Energy Systems
    Propulsion : 2 x Diesel Engine 2 x Water Jets or 2 x Azimuth-Driven Dynamic Positioning System
    Navigation
    Nautical Eqp : Radar Magnetic Compass Gyro Compass GPS Echosounder EM Log
    Weapon & Sensor Suite
    Weapons : 20 x KUZGUN SSM (Monohull) 40 x KUZGUN SSM (Trimaran) 4 x L-UMTAS SSM (Monohull) 8 x L-UMTAS SSM (Trimaran) 8 x CİRİT SSM (Monohull), 16 x CİRİT SSM (Trimaran) 4 x Torpedoes (Monohull), 8 x Torpedoes (Trimaran) 12,7 mm Machine Gun STAMP (RCWS), R-ECM
    Sensors : Active Stabilization System, KARETTA Anti-jam GNSS Obstacle Avoidance Sonar, KIRLANGIC EO/IR Camera ANS510-D Inertial Navigation System Electronic Warfare; AREAS 2NC ESM System / AREAS 2NC ECM System
    Communication : Broadband Satellite Communication System Narrowband Satellite Communication System RF Communication, 4G / LTE Communication
